Venue Technical Information
Venue Request Form
Essential details for seamless event planning at our venue.
This page provides essential details for production teams planning an event at our venue. Please review the information below and let us know if you have any questions or specific requirements.
Parking & Access
Bus Parking
Shore power is available for tour buses; however, the connection is located on the west side of our campus, while the main sanctuary is on the east side.
TRUCK Parking
If buses have onboard generators, they may park in the east parking lot for easier access.
Load-In & Stage Access
Dock/Ramp
We do not have a loading dock. A ramp to ground level will be required.
Location
Load-in occurs through our east parking lot, which leads directly to the main sanctuary. The distance from the truck to the entrance is approximately 50 feet.
Path to Stage
The pathway from the entrance to the stage spans approximately 100 feet. A ramp is necessary for transporting larger equipment.
Backstage Access
The backstage entrance is relatively narrow, and larger equipment will need to be brought in via a ramp at the front of the stage.
Stage Dimensions
Our stage features a unique triangular layout with non-standard dimensions. Please refer to the attached rendering for precise measurements.
Power Specifications
- A designated power box for touring production is located approximately 60 feet behind the stage.
- The connection is three-phase, 240V (please refer to the attached images for details).
- If additional power accommodations are needed, please coordinate with our team in advance.

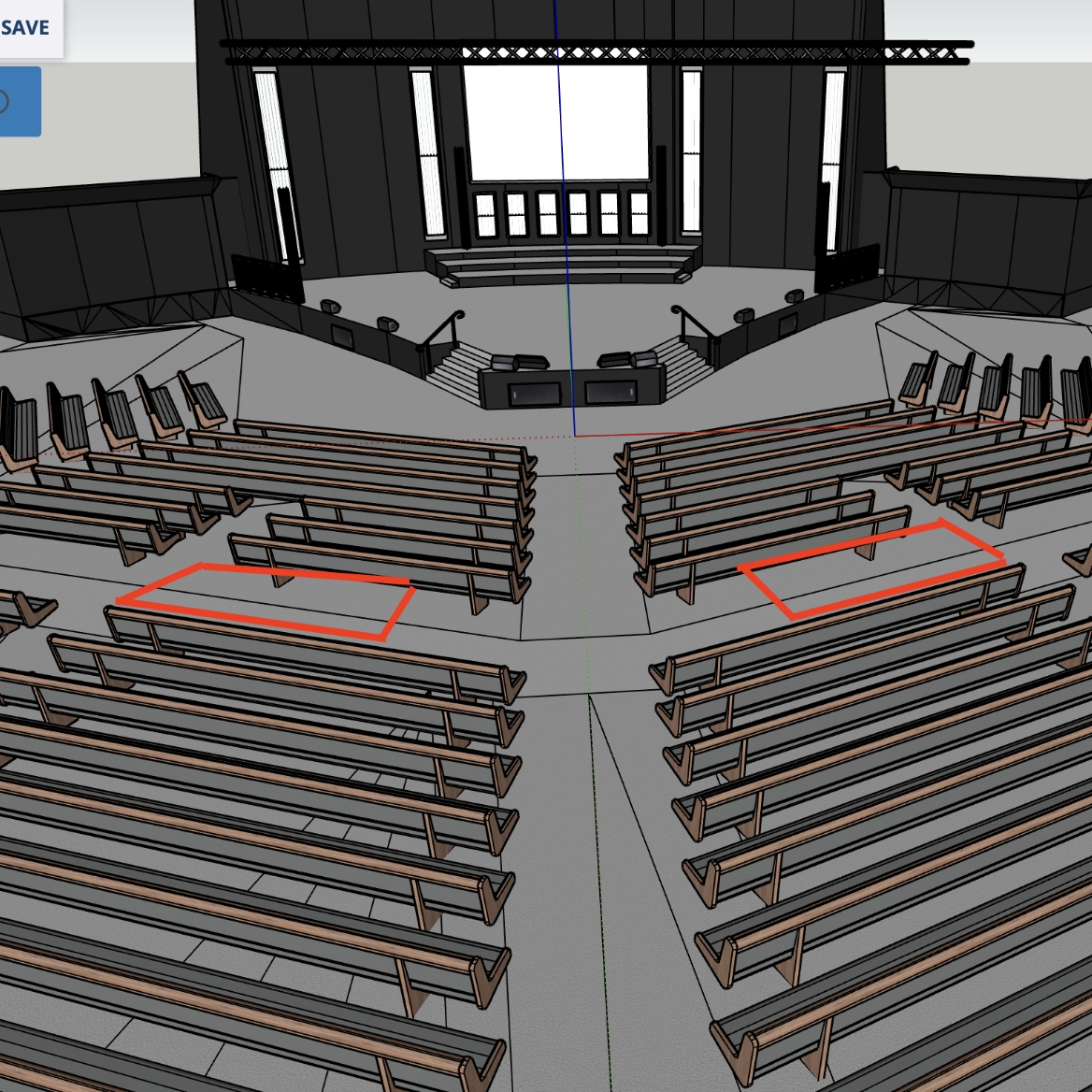

Front of House (FOH) Setup
- A designated power box for touring production is located approximately 60 feet behind the stage.
- The connection is three-phase, 240V (please refer to the attached images for details).
House Audio
While our PA system is available, we strongly recommend bringing your own system for optimal performance. Our in-house system is not fully optimized for touring configurations or high-volume demands.
Mixing Console
Allen & Heath dLive C3500
Line Arrays
(3) 5-box JBL 928LA arrays
Subwoofers
(4) double 18” “Transcendence” subs (aging, with performance limitations)
Most touring productions send left and right outputs to our system but prefer to use their own subwoofers due to the unique configuration of ours.
Lighting
Our in-house lighting system is available for use, though additional fixtures may be necessary to meet production needs.
Control System
Chamsys QuickQ40 (located in the rear tech booth)
Side Truss Lighting
- (1) CHAUVET PROFESSIONAL Rogue R3 per side
- A mix of incandescent fresnels and ellipsoidals
- Rogue fixtures on all trusses are controlled via wireless Show Baby transmitters.
- Incandescent fixtures are hardwired into dimmer packs on our console.
- If only Rogue washes are required, the Show Baby transmitter can be connected to your
Backlighting
- Currently, we do not have dedicated backlighting.
- LED strip lighting on the rear wall provides ambient color effects.
- Future upgrades will include rear trussing for enhanced backlighting.
Front Truss Lighting
- (4) CHAUVET PROFESSIONAL Rogue R2 moving heads
- (4) Incandescent ellipsoidals
- (4) Incandescent fresnels
Control System
- Slim Pars
- Chauvet Intimidator Scan 360s (wired via DMX)
Control System
- House lighting is Bluetooth-controlled via a centralized hub.
- We can provide a pre-programmed controller with up to four lighting scenes, which
VIDEO SYSTEM
Touring productions are welcome to integrate into our video system.
- We operate three projectors controlled by an ATEM Constellation 2ME located in the rear tech booth.
- A standard SDI line connection is required for integration.
Pricing
Event date campus availability is subject to previously scheduled events including but not limited to church services and Grace Leadership Academy school hours.
VENUE FEES
| Full Campus Rental | $3,500.00 |
| Dome/Lobby Rental Only | $2,000.00 |
| Janitorial Services | $350.00 |
| Deputies | $60/hr |
| Church Personnel | $25/hr |
Basic Venue Info
| Maximum Dome Capacity | 1550 |
| Safety Personnel | 6-8 as Needed |
| Volunteers Provided? | Yes |
| Load in/out provided | Up to 5 people |
| Concessions Available? | Yes |
